SMS-ALARM CONTROLLER II QUADR-BAND TCP/IP GSE

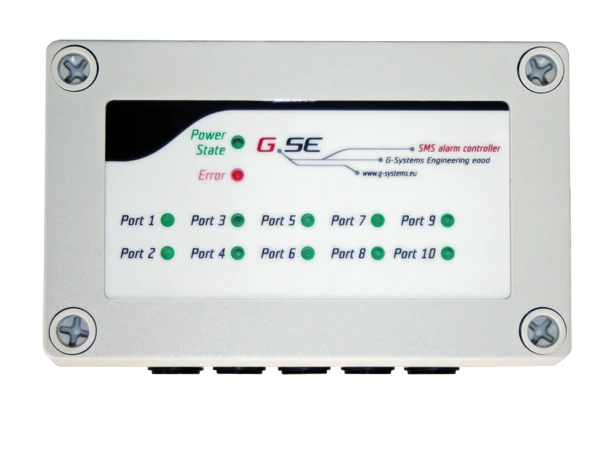

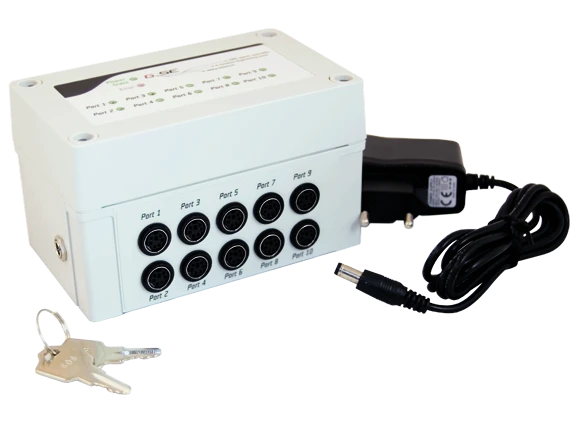

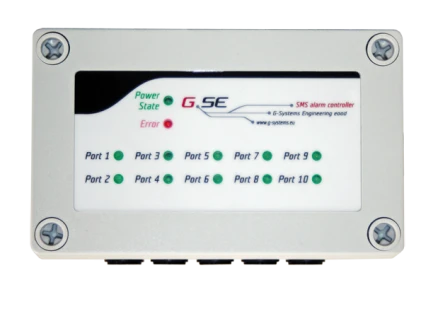

SMS-ALARM CONTROLLER is the plug&play control unit that can be fully configured independently by the user.
It houses a slot for inserting a SIM card.
Up to 10 independent sensors and outputs can be connected to the control unit; once the desired sensors are inserted, the control unit will recognise them automatically.
It offers additional functions such as the possibility of storing up to five telephone numbers.

SENSORS TO BE PURCHASED SEPARATELY

Available sensors:

- Smoke detector with 6m cable
- Gas detector with 6m cable (propane, butane)
- Red magnetic door and window detector with 6m cable
- Water leak detector with 6m cable
- Temperature and humidity sensor with 6m cable


TYPES OF SMS ALARM NOTIFICATIONS

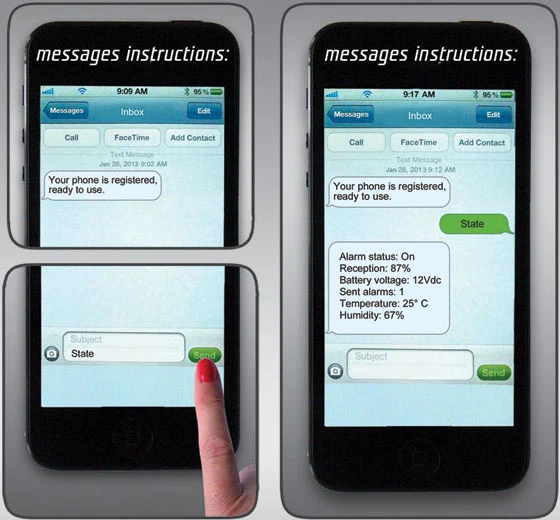

Below are the alarm notifications that can be received via SMS:

- smoke alert
- motion alert
- water leakage warning
- temperature and humidity monitoring
- magnetic contact opening & intrusion warning (for windows, doors, etc.)
- power failure warning
- gas warning
- glass breakage warning
- external siren operation/tampering warning

FUNCTIONS:

- automatic detection of the sensor connected to the control unit
- data transmission security adjustable from normal to coded control
- minimum and maximum values for temperature and air humidity communicable and adjustable via SMS
- storage of up to 5 telephone numbers (1 main , 4 secondary)
- multilingual selectable from English, French, Portuguese, German or Spanish
- delayable activation time from 0 to 180 seconds before alarm goes off

DIMENSIONS AND TECHNICAL DATA:

- Power supply adapter: 100-240 V / 50-60Hz
- Supply voltage: 12 VDC + /-10% Current: 1A min.
- Temperature range:-10°C to 50°C
- Humidity range: 0-95%.
- GSM frequencies: 850 / 900 / 1800 / 1900 MHz
- Dimensions (L x W x H): 80 x 140 x 78 mm
